Kona Ouroboros Carbon Deluxe (CR/DL)

$4,699.99

Gloss Harbor Grey

Kona Rove/Sutra/Ouroboros Sizing

Kona suggests sizes according to rider height, however these are just a guide. Everyone has different proportions and preferences, so if you sit between two sizes, we'd suggest test-riding both.

Height		Size
4' 10" – 5' 1"	147 – 155 cm	48cm
5' 0" – 5' 3"	152 – 160 cm	48–50cm
5' 2" – 5' 7"	157 – 170 cm	48–52cm
5' 6" – 5' 10"	168 – 178 cm	52–54cm
5' 9" – 6' 0"	175 – 183 cm	52–56cm
5' 11" – 6' 2"	180 – 188 cm	54–58cm
6' 1" – 6' 5"	185 – 196 cm	56–58cm

If you feel little difference between sizes, opting for the smaller generally offers more adaptability down the line. Bikes can quite easily be made to feel bigger, but when trying to shrink a bike that feels too big, your options are more limited.

Call us for information on options not shown or out of stock.

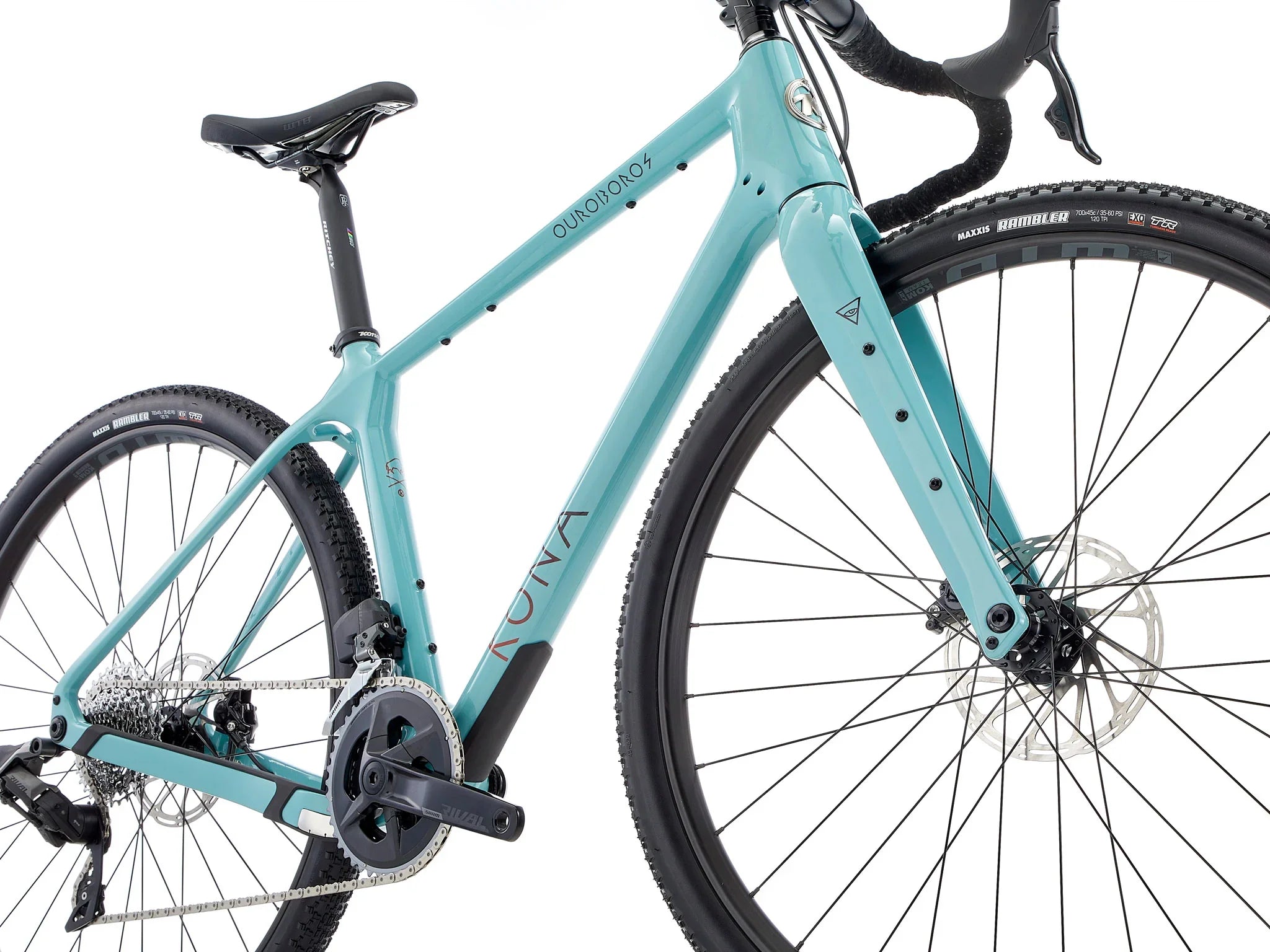

The Ouroboros Carbon Deluxe (CR/DL) is a creation that prioritizes lightweight features. It adheres to the sacred and long-established characteristics of drop bar bikes. It is a stunning gravel bike for those who seek a more traditional look and feel.

Kona have thoughtfully selected gearing with steps that are closer together to help maintain your ideal cadence. With that sweet spot so easy to find, you won’t lose your rhythm – no matter your load or your speed.

Tech Specs

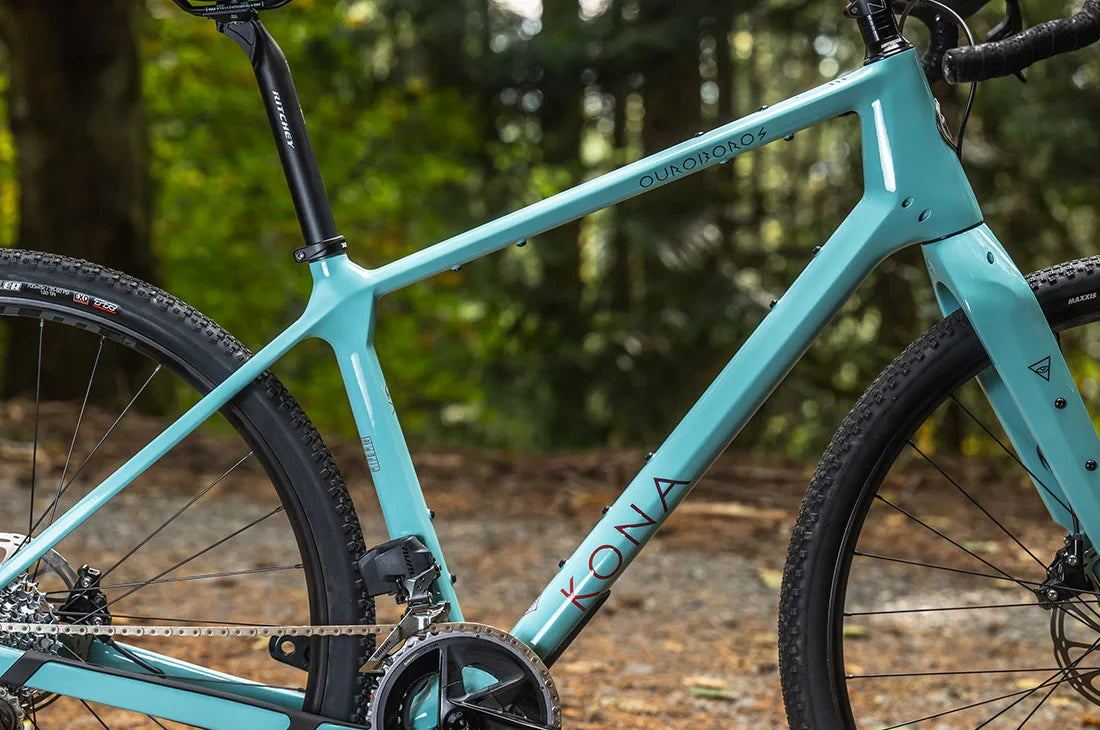

Frame

Kona Carbon

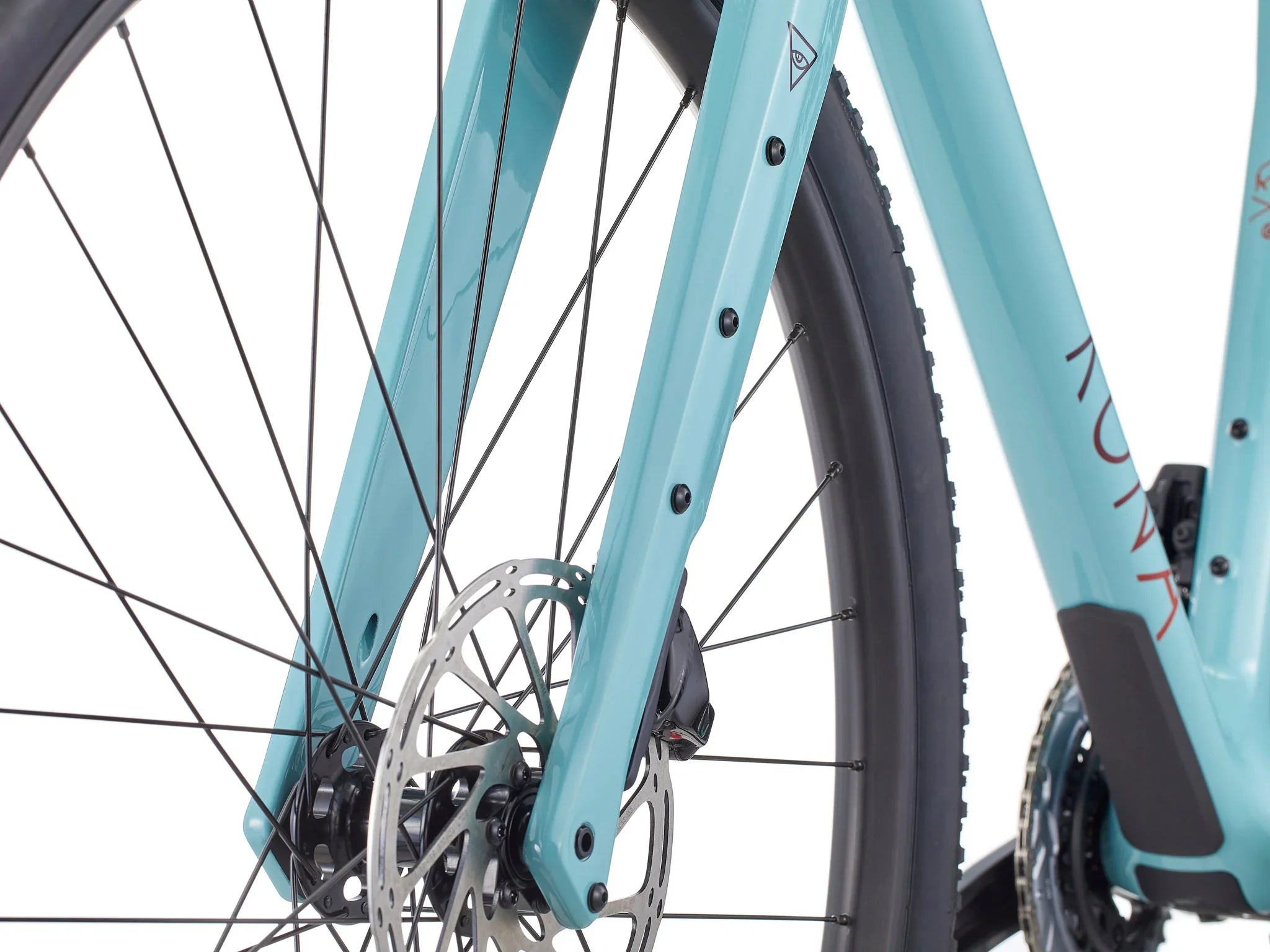

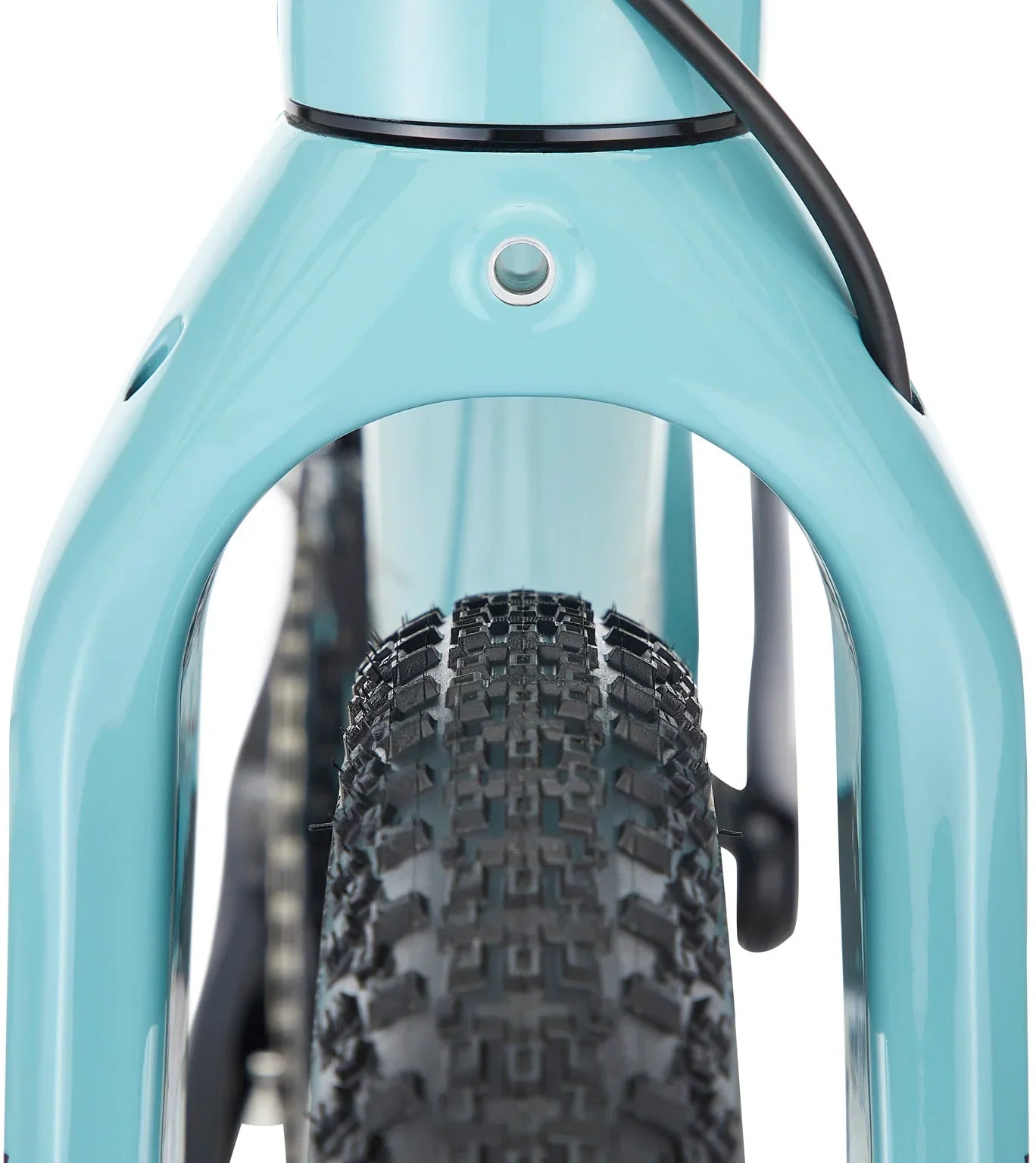

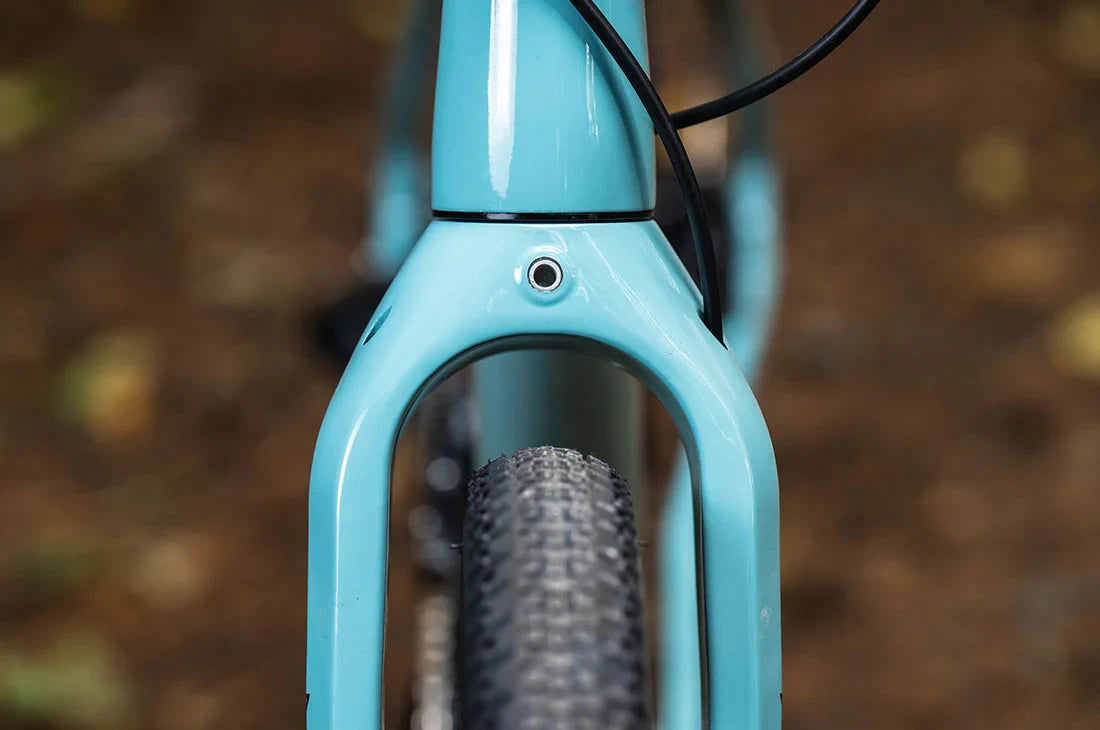

Fork

Kona Ouroboros Carbon (420mm axle to crown, tapered 1.5 (28.6 - 38.1), 100x12mm, internal brake + dynamo routing, 160mm flat mount)

Stem

Ritchey Trail Comp, 0º (48-52: 45mm; 54-58: 60mm)

Headset

FSA Orbit No. 57 (ZS 44/56)

Handlebars

Ritchey Venturemax Comp (24º flare; 4.6º backsweep; 48–58cm: 460mm–520mm)

Grips/Tape

Velo bar tape

Saddle

WTB Volt Medium Steel SL

Seatpost

Ritchey Link 20 WCS (31.6mm, 20mm setback)

Seat Clamp

Kona 34.9mm

Levers

SRAM Rival ETAP AXS

Front Derailleur

SRAM Rival ETAP AXS Wide

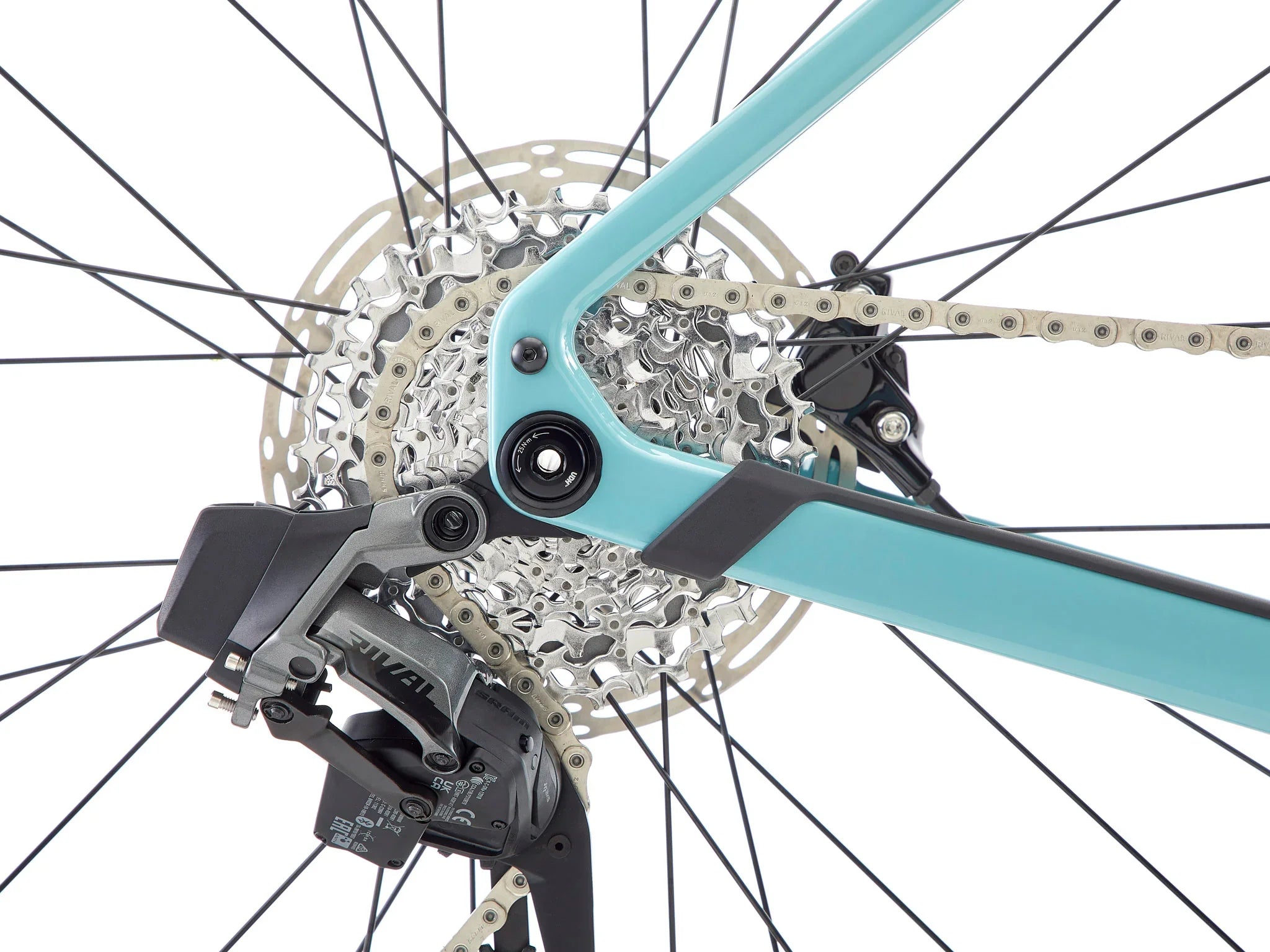

Rear Derailleur

SRAM Rival ETAP AXS

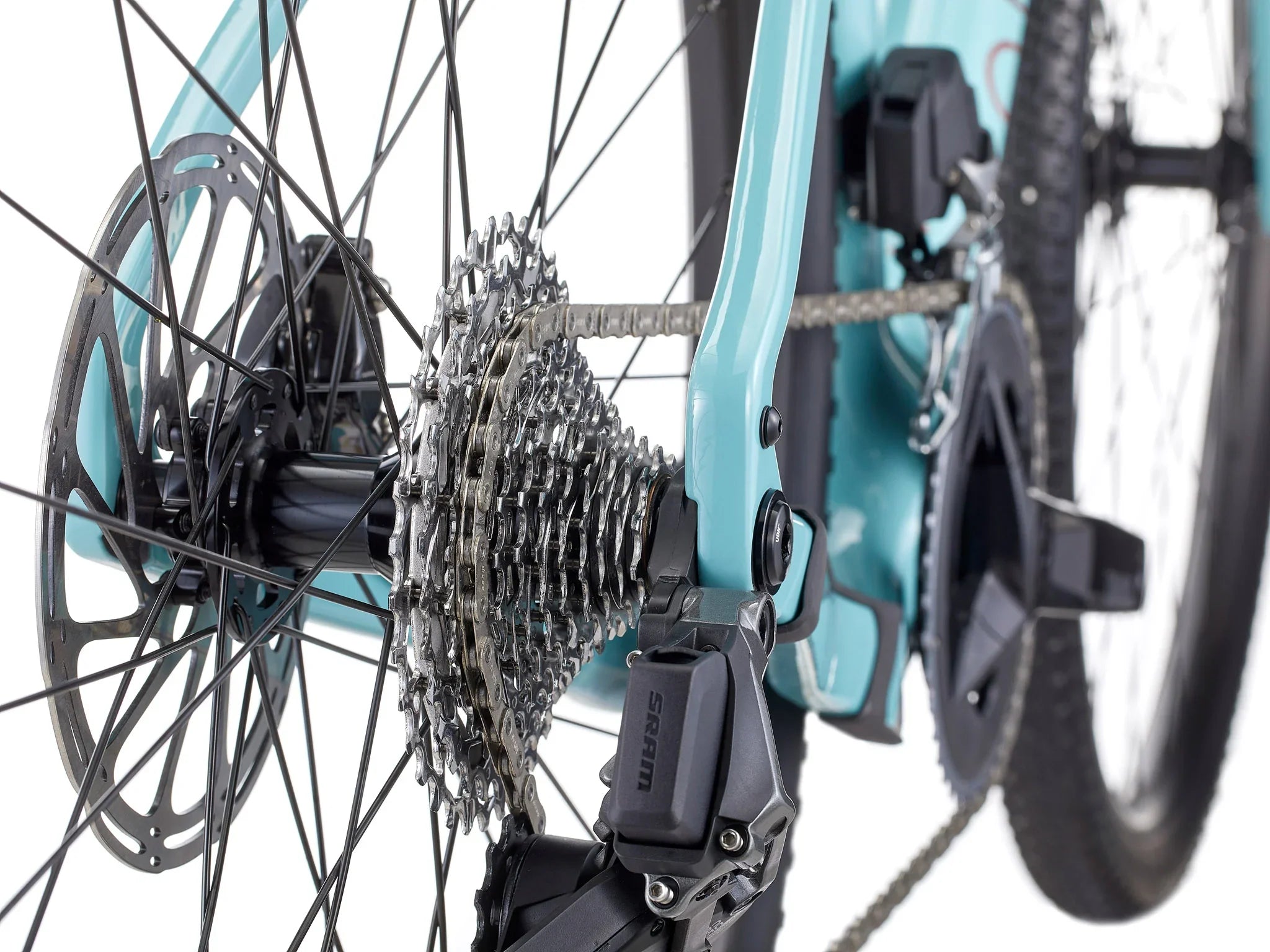

Cassette/Gearing

SRAM Rival (XG-1250) 10–36t, 12 speed, XDR

Crankset

SRAM Rival DUB Wide

Chainring(s)

SRAM Rival 43/30t Wide

Chain

SRAM Rival 12 speed

Bottom Bracket

SRAM Press-Fit, 86.5mm, DUB Wide

Brake Levers

SRAM Rival ETAP AXS

Brakes

SRAM Rival Flat Mount Hydraulic (SRAM Centerline, 6-bolt, 180mm)

Front Hub

KT-Taiwan (QL-S3GR), 100x12mm, 32h, 6-bolt

Rear Hub

KT-Taiwan (QL-DD4DR), 142x12mm, 32h, 6-bolt, XDR freehub, STAR ratchet

Rims

WTB KOM i27 6069 alloy, 32h, TCS 2.0 (tubeless-ready)

Spokes

Double butted stainless

Tires

Maxxis Rambler 700x45c, TR, EXO
